DIN95-开槽半沉头木螺钉 标准查询

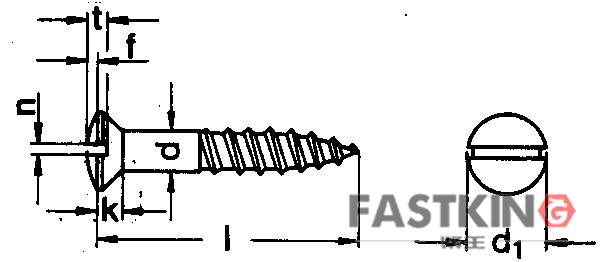

DIN 95

*All measurements in millimeters (mm)*

d d1 k f approx. n t max.
M2 3.8 1.2 0.5 0.5 1
M2.5 4.7 1.5 0.6 0.6 1.2
M3 5.6 1.65 0.75 0.8 1.45
M3.5 6.5 1.93 0.9 0.8 1.7
M4 7.5 2.2 1 1 1.9
M4.5 8.3 2.35 1.1 1 2.1
M5 9.2 2.5 1.25 1.2 2.3
M6 11 3 1.5 1.6 2.8

All information is strictly informative
